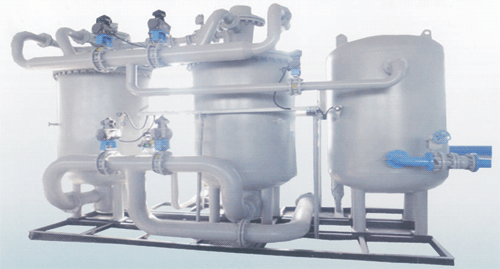

常压解吸变压吸附制氧设备(Vacuum Desorption PSA Oxygen Plant)

流程简介:

原料空气经压缩机增压,压缩空气进缓冲罐后进入吸附器,空气中的N2、H2O、CO2及碳氢化合物被吸附剂吸附,同时获得氧气,吸附塔吸附饱和后,自动切换,该吸附器减压至大气压再生。本设备有两个吸附塔交替使用,连续获得氧产品。

PROCESS DESCRIPTION
Feed air is compressed by the air compressor. The compressed air is led to the buffer tank and then to the adsorber, nitrogen, moisture, carbon dioxide and hydrocarbon in the air are adsorbed by adsorbent, product oxygen is obtained at the same time. Once the adsorbent in the adsorber is saturated, the system will change over automatically, and this adsorber will be depressurized to atmospheric pressure for regeneration. There are two adsorbers working alternatively to generate product oxygen continuously.

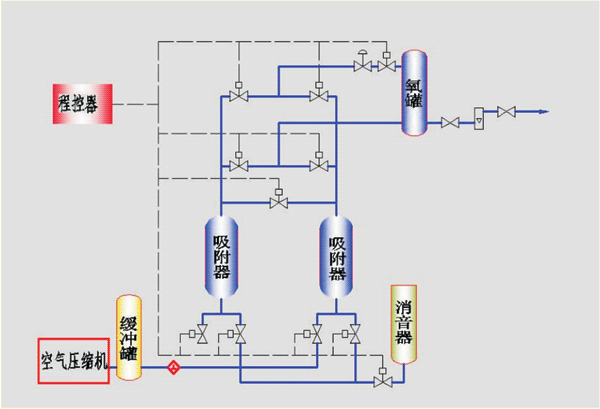

PSA制氧设备流程示意图:PROCESS FLOW SHEET FOR PSA OXYGEN PLANT


型号规格

型号
Model

氧气纯度
O2 Purity

氧气输出压力
O2 Output Pressure
氧气产量
Nm3/h
O2 Output
装机功率
Kw
Power
占地面积
m×m
Area Taken
PSAO-5 90%至95% 0.2MPa 5 7.5 4×2
PSAO-10 10 15 4×3
PSAO-15 15 30 4×5
PSAO-20 20 37 4×7
PSAO-30 30 45 4×8
PSAO-40 40 55 4×10
PSAO-50 50 65 5×10
PSAO-70 70 95 6×10
PSAO-80 80 120 7×10
PSAO-100 100 132 8×12
PSAO-150 150 200 12×12


通用条件:
电力:低压电源:3相
冷却水:温度≤32℃
安装场地:室内非防爆地区,环境温度5~35℃


Utilities:
Power: LT power supply: 3-phase
Cooling Water: Temperature ≤32℃
Installation Area: Non Explosion-proof Area



应用领域:APPLICATION FIELD

黑色金属冶炼
Ferrous Metal Refinery
富氧喷煤炼铁、电炉炼钢等
Oxygen –rich PCI iron making & EAR steel making
有色金属冶炼
Non-ferrous Metal Refinery
炼铜、炼锌、炼铅、炼金、炼镍等
Copper, Zinc, Lead, Gold and Nickel refinery
化工造气
Chemical Gas
合成氨、甲醇、乙烯、乙二醇生产等
Ammonia, methanol, ethylene and glycol production etc.
富氧燃烧
Oxygen Rich Combustion
工业锅炉、玻璃炉窑、电解铝等
Industrial boiler, glass kiln & Electrolytic Aluminum
造纸业
Paper Making
造纸工业氧气蒸解、漂白、黑液氧化
Oxygen cooking, bleaching & oxidization of black liquor in paper making industry
环保领域
Environmental Protection
氧气曝气活性污泥法处理工业废水、垃圾焚烧
Oxygen aeration activated sludge process for industrial waste water treatment & waste incineration
玻璃加工
Glass Making
富氧助燃技术应用于玻璃熔窑
Oxygen-rich combustion technology applied in glass kiln
煤矿生产
Coal Mine Production
煤矿机械修理厂、加工制造、修理
Repair Machining, Manufa cture & main tenance of Coal Mine Machinetry
