变压吸附制氮(Vacuum Desorption PSA Oxygen Plant)

概论:

我公司生产的PSAN制氮设备是在吸取国内外众多生产厂家成功经验的基础上,采用国际先进的工艺流程和技术,利用本公司雄厚的技术优势,经多年的研究、试验、完善后推出的国内先进的空气分离设备。
具有投资少;操作简单、自动化程度高、运行可靠、维修保养周期长、运行费用低;单位能耗低;使用寿命长等优点。针对不同应用领域,可实现不同纯度指标,并已实现系列化。

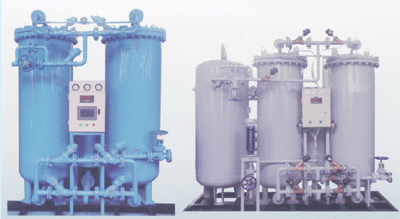

PSA Nitrogen Plant
Overview
Our PSAN nitrogen plant is the most advanced air separation plants through years of research, tests and perfection in China. Taking solid technology advantages of our company, the plant adopts the latest process and technology in the world and is developed on basis of successful experiences of many suppliers both inside and outside China.
It has the characteristics of less investment, simple operation, high automation level, reliable operation, long maintenance and overhaul cycle and low operation cost, low unit power consumption and long service life etc. Aiming on different application field, we can provide different purity index in series.

工艺流程简介:

原料空气经压缩机增压后,压缩空气进入空气缓冲罐以减缓气流的脉动,然后进入除油过滤器,把水珠、油雾除去。干净压缩空气进入吸附器,空气中的O2、H2O、CO2以及碳氢化合物被吸附剂吸附,同时获得氮气,吸附塔饱和后,自动切换,该吸附器减压至大气压力再生。本设备设置2个吸附器交替使用,以连续获得产品氮气。设置氮气储罐以稳定供气系统气压的稳定。

PSA Nitrogen Plant
PROCESS DESCRIPTION
The feed air, after being compressed by the compressor, will enter into the buffer tank to reduce the stream fluctuation, then passes through the filter to remove the moisture and oil mist. The dry and clean compressed air goes into the adsorber, oxygen, moisture and carbon dioxide and other hydrocarbons in the air will be adsorbed, nitrogen is obtained at the same time. The system will change over automatically after the adsorbent is saturated. Then this adsorber will be depressurized to the atmospheric pressure for regeneration. There are two adsorbers working alternatively to obtain product nitrogen continuously. A nitrogen storage tank is provided to stabilize the supply pressure.



工艺流程示意图(PROCESS FLOW SHEET:)


型号规格(Models & Specifications):

型号
Model

氮气纯度
N 2 Purity

氮气输出压力
N2 Output Pressure
氮气产量
Nm3/h
N2 Output
耗气量
Nm3/h
Air Capacity Consumed
装机功率
Km
Power
PSAN-150 98% 0.7MPa 150 360 38.58
PSAN-300 300 750 77.57
PSAN-500 500 1248 114.4
PSAN-600 600 1446 165.78
PSAN-800 800 2004 206.51
PSAN-1000 1000 2502 258.62
PSAN-1500 1500 3750 373.6
PSAN-2000 2000 4998 520.8
PSAN-2500 2500 6246 571.5
PSAN-3000 3000 7500 672



型号
Model

氮气纯度
N 2 Purity

氮气输出压力
N2 Output Pressure
氮气产量
Nm3/h
N2 Output
耗气量
Nm3/h
Air Capacity Consumed
装机功率
Km
Power
PSAN-150 99% 0.7MPa 150 423 38.58
PSAN-300 300 846 78.1
PSAN-500 500 1410 137.78
PSAN-800 800 2256 258.62
PSAN-1000 1000 2820 326.6
PSAN-1500 1500 4230 420.8
PSAN-2000 2000 5640 521.5
PSAN-2500 2500 7050 672
PSAN-3000 3000 8460 836



型号
Model

氮气纯度
N 2 Purity

氮气输出压力
N2 Output Pressure
氮气产量
Nm3/h
N2 Output
耗气量
Nm3/h
Air Capacity Consumed
装机功率
Km
Power
PSAN-150 99.9% 0.7MPa 150 468 46.94
PSAN-300 300 930 93.1
PSAN-500 500 1560 165.78
PSAN-800 800 2496 258.62
PSAN-1000 1000 3120 326.6
PSAN-1500 1500 4680 420.8
PSAN-2000 2000 6276 621.5
PSAN-2500 2500 7800 786
PSAN-3000 3000 9300 936

通用条件:
电力:低压电源:3相
冷却水:温度≤32℃
安装场地:室内非防爆地区,环境温度5~35℃


Utilities:
Power: LT power supply: 3-phase
Cooling Water: Temperature ≤32℃
Installation Area: Non Explosion-proof Area



特点
设备简单,造价低;
自动化程度高,操作简单;
动力少、节能、制氮成本低;
运动件、易损件少,安全可靠,维修少;
启动时间短,气量稳定,停、用方便;
占地面积少、无污染;
操作范围广,变工况容易。


Features:
Simple Equipment, low cost
High automation level, easy operation
Less power consumption, energy saving & low cost of nitrogen product
Less movable parts and easily-damaged parts, safe, reliable and less maintenance
Short start-up time, steady flow, convenient shut-down & operation
Less area taken, free of pollution
Wide operation scope, easy load variation



应用领域:APPLICATION FIELD

化学、化工工业
Chemical Industry
存贮液体上面大气层的惰性化;吹洗容器、管道、反应器和隔离室;合成纤维纺线、拉丝防氯化;设备防腐;涂料颜色生产中充氮;防止油干燥时的聚合作用;对油船提供保护气体;海洋工程的惰性气体供应;橡胶生产中的包装和气氛保护。
Deactivation above the stored liquid; clean vessel, pipeline, reactor and isolation chamber; anti-chloride of synthetic fiber & spinning; anti-corrosion, nitrogen purging in the coating production line, prevention from polymerization of oil, protection gas for oil tanker; inert gas for ocean engineering; packing and protection gas in rubber production
煤炭开采
Coal Mining

向采空区氧化带内或火区内注入一定流量的氮气,使其氧含量降到10%或3%以下,起到防火、灭火和抑制瓦斯爆炸作用。
Inject a certain amount of nitrogen gas to the goaf or fired area to reduce the oxygen content to less than 10% or 3% for fire-fighting, fire-proof and inhibition of gas explosion

冶金和金属加工工业
Metallurgical & Metal Machining Industry
熔炼炉和吹洗;容器和管道的泄漏检验和密封检验;铁铸造、铝铸造、铝冶炼、粉末冶金烧结和金属热处理的气氛保护。
Purging of melting furnace, leak test and air tight test for vessels and pipelines, iron casting, aluminum casting, aluminum refinery, powder metallurgy sintering and protection gas for heat treatment
玻璃、塑料工业
Glass & Plastic Industry

浮法玻璃生产中的气体保护;塑料生产的防氧化;气动传输。
Protection gas for float glass production, anti-oxidization in plastic production and pneumatic transfer
医学、科学研究
Medical & Scientific Research

中草药的常温贮藏及抑治害虫。生物防腐;材料检验;科研实验。制药原料;药物的充氮包装;运输及保护。
Ambient storage of Chinese herbal medicine and pest & insects control; Biological anti-septic: material inspection & scientific experiment; Pharmaceutical materials: nitrogen filling for medicine package, transportation and protection
电子工业
Electronic Industry
灌充断路器和电压导体;制造半导体和电器用保护气体;激光打孔等电气元件氮气氛。
Filling circuit breaker and conductor; protection gas for semi-conductor and electric appliance
食品、水果
Food & Fruits

食品包装用保护气体;酒、啤酒、果汁的贮存与保鲜;粮油食品、茶叶等的常温贮存及抑治害虫;水果、蔬菜在适宜温度长期保鲜;气调冷库的气调气。
Protection gas for food package, storage and keep fresh for liquor, beer, juice, foodstuff, oil and tea and pest control; long-term preservation of fruits and vegetables; CA gas for CA cold stores
